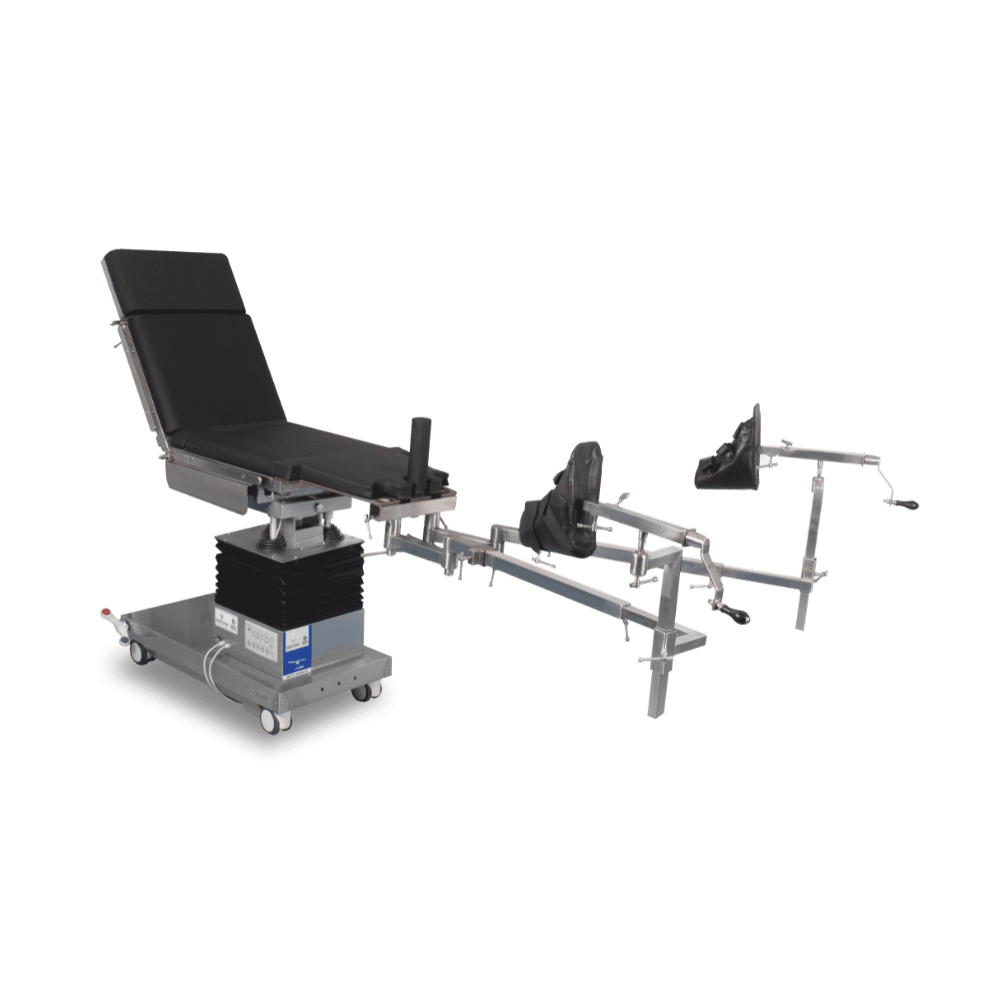

BSMT 2008 – ORTHO
- Top Dimensions L x W: 1970 x 535 mm
- Height Adjustment Without Mattress: 720 – 1030 mm
- Height Adjustment With Mattress: 770 – 1080 mm
- T.B. & R.T.B.: 25° – 25°
- Lateral Tilt: 20° – 20°
- Back Rest: +70° – 35°
- Head Rest: +40° – 90°
- Leg Section: +15° – 90°
- Load Capacity: 180 Kgs.
- Power Supply Input: 220V – 50 Hz
- Includes Ortho Hanging Attachments
- Ortho Hanging Attachments include:
- • Device for Hand Surgery
- • Central Post
- • Device for Tibia Nailing
- • Device for Femur Nailing
- • Steinmann Pin Holding Clamp
- • Foot Rest
- • Device for Finger Traction
- • Spine Attachment
- • Raised Arm Board
- • Elbow Support for Finger Traction
- • Device for Elbow Surgery
- • Device for Knee Arthroscopy Surgery
- • Urology/Gynae Extended Plate
- • Device for Shoulder Arthroscopy
- • Horse Shoe Attachment
- • 3 Pin Neuro Attachment
- • Ophthalmic Head Rest
- • Trolley/Stand for Ortho Attachment
- • Albee’s Type Ortho Attachment
