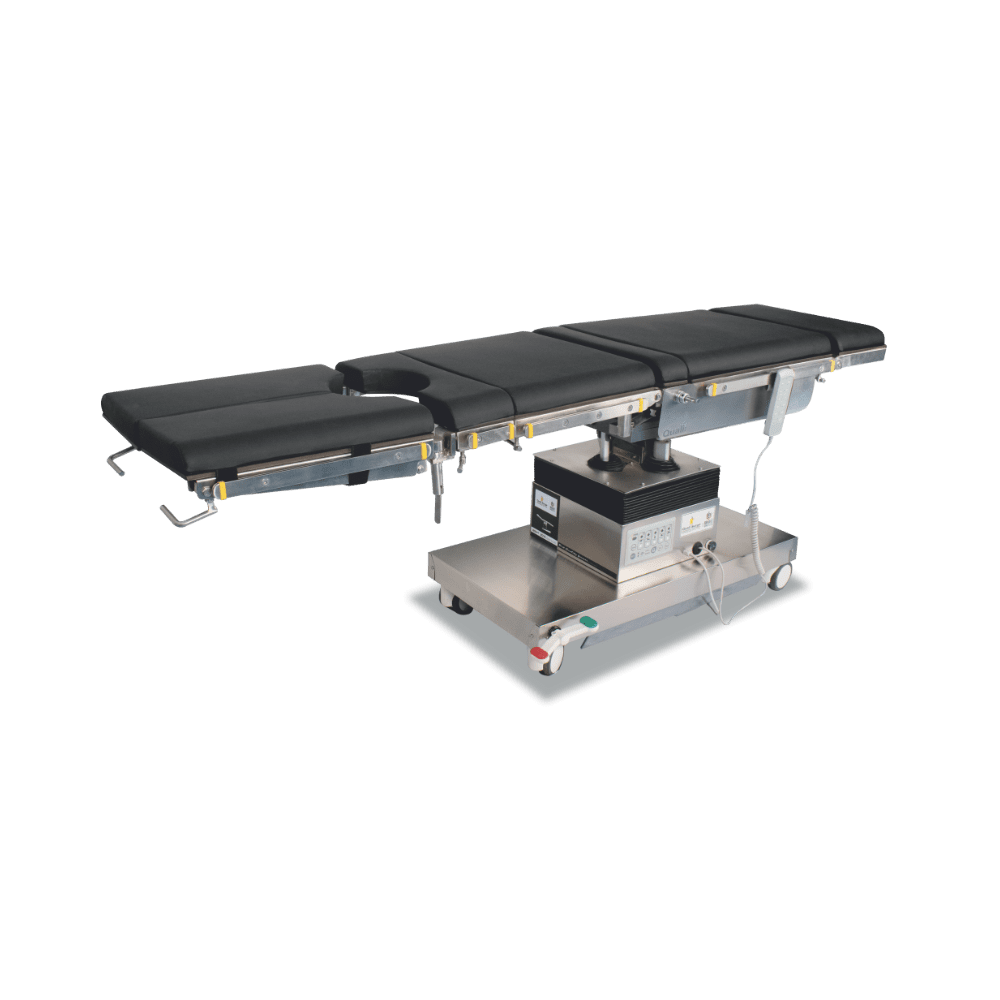

BSMT 2014 EASY SLIDE : MOTORIZED OPERATION TABLE EASY SLIDE

An Innovative C Arm compatible multi purpose electric operating Table backed by an intelligent design and articulations for ergonomic convenience and compatibilities for ease of operation and patient comfort.
Operation Table BS MT 2014 Top Slide Table combines the design idea of modern technique adopts the advanced electric – mechanical transmission system, follows the trend of current medical technology, meets the requirement for observe and diagnose of imaging during operations.
Product easy operation, elaborates technique make the products catch up the level of international quality. The operating table adopts the imported actuator, wit electric gear mash mechanism structure. The table top adopts the radiolucent material, with accurate and convenient spade for C – arm, can get X – ray imaging of full body without moving the patient. S.S. for the cover of base, helps prevent glare, impact; and it is easy to clean up.
Also available with Manual over ride where in a hand crank operated manually can be used’ in case of power failure.

6 SECTION TOP.
MANUAL KIDNEY BRIDGE.
INTERCHANGEABLE HEAD AND FOOT SECTIONS.
RADIOLUCENT TOP.
SINGLE HAND HELD WIRED REMOTE.
ADDITIONAL REMOTE PLACED ON THE COLUMN.
50 mm HIGH DENSITY MATTRESS.
BATTERY BACK UP.
SPLIT LEG SECTION.
300 mm TOP SLIDE..
IMPORTED CASTORS WITH LOCKING LEVER.
ADDITIONAL UROLOGY / GYNAEC EXTENDED PLATE

PARTICULARS SPECS
TOP DIMENSIONS L x W 2190 x 535 mm
HEIGHT ADJUSTMENT WITHOUT MATTRESS: 740 – 1040
HEIGHT ADJUSTMENT WITH MATTRESS 790 – 1090 mm.
T.B & R.T.B: 25⁰ – 25⁰
LATERAL TILT: 20⁰ – 20⁰
BACK REST UPWARD: +70⁰
BACK REST DOWN WARD: – 35⁰
HEAD REST UPWARD: +40⁰
HEAD REST DOWNWARD: – 90⁰
LEG SECTION UPWARD: +15⁰
LEG SECTION DOWN – 90⁰
LOAD CAPACITY: 180 Kgs.
POWER SUPPLY INPUT: 220 v – 50 Hz.
POWER OUT PUT: 220 v – 50
PARTICULARS HIGHLIGHTS QTY
MATTRESS: 50 mm 1 Set
ARM REST: With cushion. 1 Pair.
SHOULDER SUPPORT: Padded 1 Pair
BUTTOCK SUPPORT: Padded. 1 Pair.
RUBBERIZED LEG REST: SS with Ball joint Imported 1 Pair
ANAESTHETIC SCREEN: SS 304 1 No
