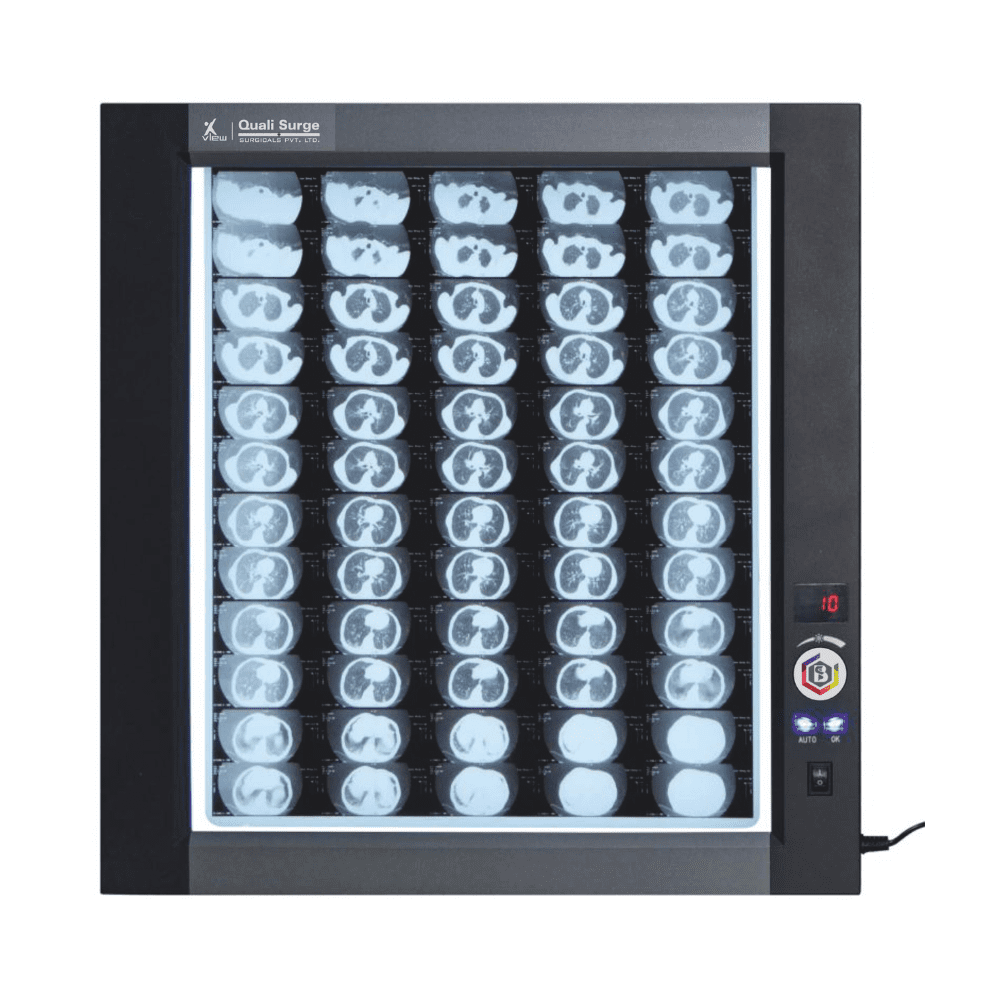

Single Viewer

X – View a combination of Unmatched
features a distinctive product, designed
and developed Indigenously keeping in
mind the requirements of medical staff
and also keeping it economical while
offering the latest L.E.D. Technology.

The product is sleek with stunning
features at the same time it offers
effective viewing.

LED technology Side lit source .

5 times longer life than conventional
CCFL / EEFL (100000 hrs)

Viewing system to view M.R.I. , C.T
X Ray Images

Power efficient.

Potential energy saving of up to 80%

3 Digit PWM Dimming System

Steeples Dimmer to get perfect brightness

Side Light with light guide plate technology.

Long life LEDs projected to produce a long
service life and hence the product becomes
maintenance free.

No UV Emission hence it is more user
friendly.

Silent operation.

Sensor based. The panel will light up when film
inserted and off when moved away. at the
same time can be completely kept on through
a switch.

Memory function to store the comfortable
illumination.

Aluminum + ABS structure Design which helps
heat dissipation and gives extended life

PARTICULARS SINGLE VIEWER
DIMENSIONS 476 x 500 x25 mm
VIEWING AREA 361 x 420 mm
LIGHT SOURCE L.E.D
INPUT VOLTAGE 220 V / 50 Hz.
CONSUMPTION 30 Watt
LIGHT SOURCE SMD 144 pcs /panel
COLOR TEMP 6500 K
VIEWING UNIFORMITY >  90%
